DustTrak DRX Aerosol Monitor

$0.00 + Freight & GST

Call 0418 791 130 for BEST price in Australia on TSI DustTrak 8533

EAN: N/A SKU: TSI8533 TSI DustTrak DRX Aerosol Monitor Category:

Description

PRODUCT DETAILS

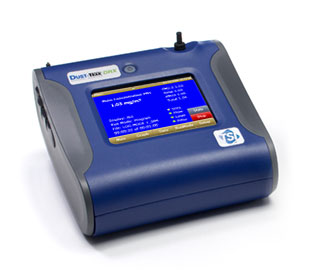

Real-time dust monitoring takes a giant leap forward! Only the DustTrak™ DRX Aerosol Monitor 8533 can simultaneously measure both mass and size fraction – no other monitor can do both. The DustTrak DRX desktop monitor is a battery operated, data-logging, light-scattering laser photometers that gives you real-time aerosol mass readings. It uses a sheath air system that isolates the aerosol in the optics chamber to keep the optics clean for improved reliability and low maintenance. It is suitable for clean office settings as well as harsh industrial workplaces, construction and environmental sites and other outdoor applications. The DustTrak DRX monitor measures aerosol contaminants such as dust, smoke, fumes and mists.

FEATURES AND BENEFITS
Simultaneously measure size-segregated mass fraction concentrations corresponding to PM1, PM2.5, Respirable, PM10 and Total PM size fractions STEL alarm setpoint Automatic zeroing (with optional zero module) minimizes the effect of zero drift Perform in-line gravimetric analysis for custom reference calibrations Manual and programmable data logging functions Desktop unit Aerosol concentration range 0.001 to 150 mg/m3

APPLICATIONS
Industrial/occupational hygiene surveys Indoor air quality investigations Outdoor environmental monitoring Baseline trending and screening Engineering control evaluations Remote monitoring Process monitoring Emissions monitoring Aerosol research studies

INCLUDED ITEMS

Carrying case, Analog alarm outputs, Rechargeable 6600 mAH Li-Ion battery, Switching power supply with universal line cords, TrakPro data analysis software CD, Zero filter, USB (device and host) computer cables, Analog/alarm output connector, Inlet cap (x2), 37-mm cassette with mesh filter, Calibration impactor kit (with PM2.5 impactor, impactor plates (x2) and impactor oil), Sample extension tube (3-ft/1-m), Sheath air HEPA filters (x4), Filter removal tool, Operation service manual and Calibration certificate

OPTIONS:

DustTrak Environmental Enclosure – 8535 – Optional



PRODUCT DETAILS

The portable, custom designed, weatherproof DustTrak™ Environmental Enclosure 8535 protects the DustTrak II and DRX Aerosol Monitor Models 8530, 8530EP, 8533 and 8533EP.  This environmental enclosure allows you to make the same accurate and precise measurements outdoors or in harsh industrial environments.

FEATURES AND BENEFITS

  • Optional accessories: internal battery system, heat shield, solar power system,Cloud based data management system
  • heated inlet sample conditioner
  • 360° omni-directional sampling inlet specifically designed to sample efficiently in a broad range of wind conditions
  • Mount enclosure to a standard survey tripod equipped with a 5/8″-11 threaded stud
  • Water trap that prevents precipitation from entering the instrument
  • Field portable
  • Secure method of deploying the DustTrak aerosol monitor and its accessories

APPLICATIONS

  • Outdoor environmental monitoring
  • Fugitive emissions monitoring
  • Site perimeter monitoring
  • Fence-line monitoring
  • Dust control operations
  • Environmental research studies
  • Construction sites
  • Harsh industrial environments
  • Urban pollution studies

INCLUDED ITEMS

  • Weatherproof case with survey tripod mount
  • 360 omni-directional sampling inlet
  • Water trap bottle
  • Internal equipment bracket with velcro straps
  • Dust caps
  • Tubing, plug
  • O-rings
  • Weatherproof AC/DC adapter

HEATED INLET SAMPLE CONDITIONER WITH AUTOZERO MODULE FOR DUSTTRAK II/DRX ENVIRONMENTAL ENCLOSURE




PRODUCT DETAILS

The Heated Inlet Sample Conditioner conditions the sample air stream before entering the DustTrak™ II or DustTrak DRX optics. In humid environments, aerosols absorb water and swell, resulting in larger signals which a photometer interprets as increased aerosol concentration. Sample conditioning removes humidity and water vapor from the sample, reducing elevated measurements caused by humidity.

The Heated Inlet Sample Conditioner is designed to install over the AutoZero module on DustTrak II/DRX Models 8530, 8530EP, 8533 and 8533EP while in use with Environmental Enclosure Models 8535 or 8537. A wiring harness (included with the conditioner) easily connects power to the conditioner and the DustTrak from either the external battery system or line voltage.

FEATURES AND BENEFITS

  • Custom made to fit on DustTrak II/DRX in use with an Environmental Enclosure
  • Simple to connect
  • No programming required

APPLICATIONS

  • Outdoor environmental monitoring
  • Fugitive emissions monitoring
  • Site perimeter monitoring
  • Fence-line monitoring
  • Dust control operations
  • Environmental research studies
  • Construction sites
  • Harsh industrial environments
  • Urban pollution studies

INCLUDED ITEMS

  • Heated Inlet Sample Conditioning Module
  • Mounting Bracket
  • AutoZero Module
  • Rh/Temp Probe and Mounting Grommet
  • Power Cable
  • Quick Start Installation Guide

dust monitor, dusttrak, pm2.5 sensor, dust monitoring equipment, tsi dusttrak, TSI DustTrak, dusttrak DRX, dust monitoring devices, dusttrak price, dust monitoring equipment price, dusttrak II, dust monitoring device, dust sensors, TSI 8533, TSI DustTrak 8533, DustTrak 8533,

Additional information

Weight 5 kg
