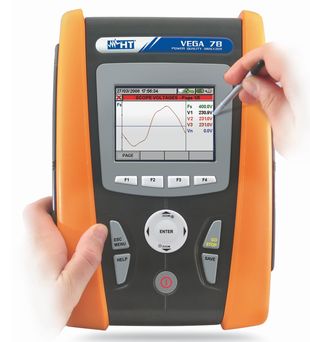

HT Italia Power Analyser /Recorder 1&3 Phase


SKU: HT Vega78 HT Italia Power Analyser /Recorder 1&3 Phase Categories: ,


Information Thanks to an innovative development, the instrument VEGA78 allow carrying out analysis and tests on single-phase and three-phase electric systems with and without neutral. The instrument display in real time the values of all fundamental electric quantities which characterize the electric system being tested (voltage, current, active power, reactive power, apparent power, power factor, etc.), showing the waveforms of voltages and currents. VEGA78 is used for testing and analysing the quality of the electric service provided by the Electric Power Supplier, for analysing single-phase and three-phase electric users such as offices and industries, when diagnosing voltage anomalies by taking advantage of the possibility of recording electric quantities. The instrument also allows evaluating the harmonic content introduced by non-linear loads such as computers, TV sets, controlled electric motors, etc. which can cause the RCD’s tripping or a neutral overheating. The instrument are supplied with the PC management software, which further expands the analysis possibilities of the data acquired Function TRMS P-N, P-P, P-PE voltage measures (5 inputs) TRMS current on phases and neutral (4inputs) Active, reactive and apparent powers measures Active, reactive and apparent energies measures Power factors measure Frequency measure Max 251 selected parameters at the same time Integrated period selectable from 1s to 60min Harmonic analysis of voltage and current up to 49th component Voltage anomalies (sags, swells) with 10ms resolution Numerical and graphical (waveforms) visualization Histogram visualization of harmonic analysis Vectorial diagram of voltages and currents Voltage unbalance Predefined recordings of parameters TFT colour display with “touch screen” 15Mbytes internal memory for recordings saving Using of external compact flash and USB pen drives USB interface for PC connection Windows software for recordings analysis Rechargeable Li-Ion battery and external AC/D adapter Contextual help selectable on each screen Virtual keyboard at display Accessories STANDARD KIT800 : Set of 5 cables + 5 alligator clips HTFLEX33D : Flexible clamp 3000A AC, diameter 174mm, 4 pcs A0055 : External adapter AC/DC recharging battery YABAT0003HT0 : Li-ION rechargeable battery PT400 : Touch pen TOPVIEW2007 : Windows software + USB cable C2007 BORSA2051N : Soft carrying bag User manual on CD-ROM Quick reference guide ISO9000 calibration certificate OPTIONAL HT4005N : Rigid clamp 5-100A AC, diameter 20mm HT96U : Rigid clamp 1-100-1000A AC, diameter 54mm HT97U : Rigid clamp 10-100-1000A AC, diameter 54mm HP30C2 : Rigid clamp 200-2000A AC, diameter 70mm HP30C3 : Rigid clamp 3000A AC, diameter 70mm HT98U : Rigid clamp 1000A DC, diameter 50mm HT903 : Accessory for connection to external CTs CF800 : Compact Flash card MCR800 : Compact Flash card reader A0056 : External adapter 110V AC 50-60Hz/12VDC SP-0400 : Set of straps for use of meter on neck 606-IECN : Connector with magnetic test lead
