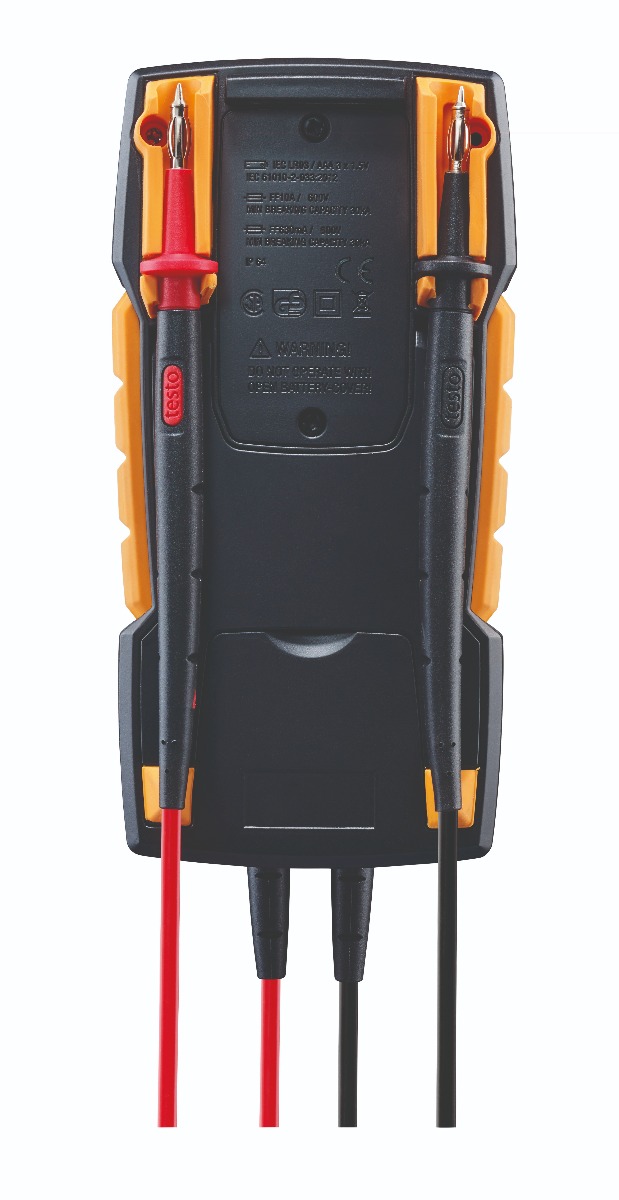

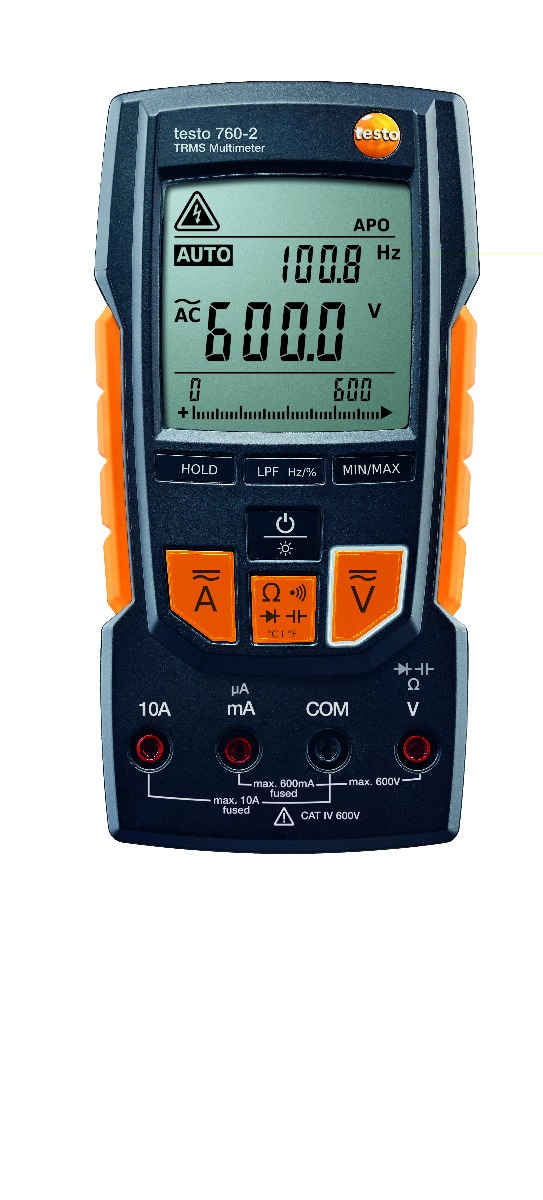

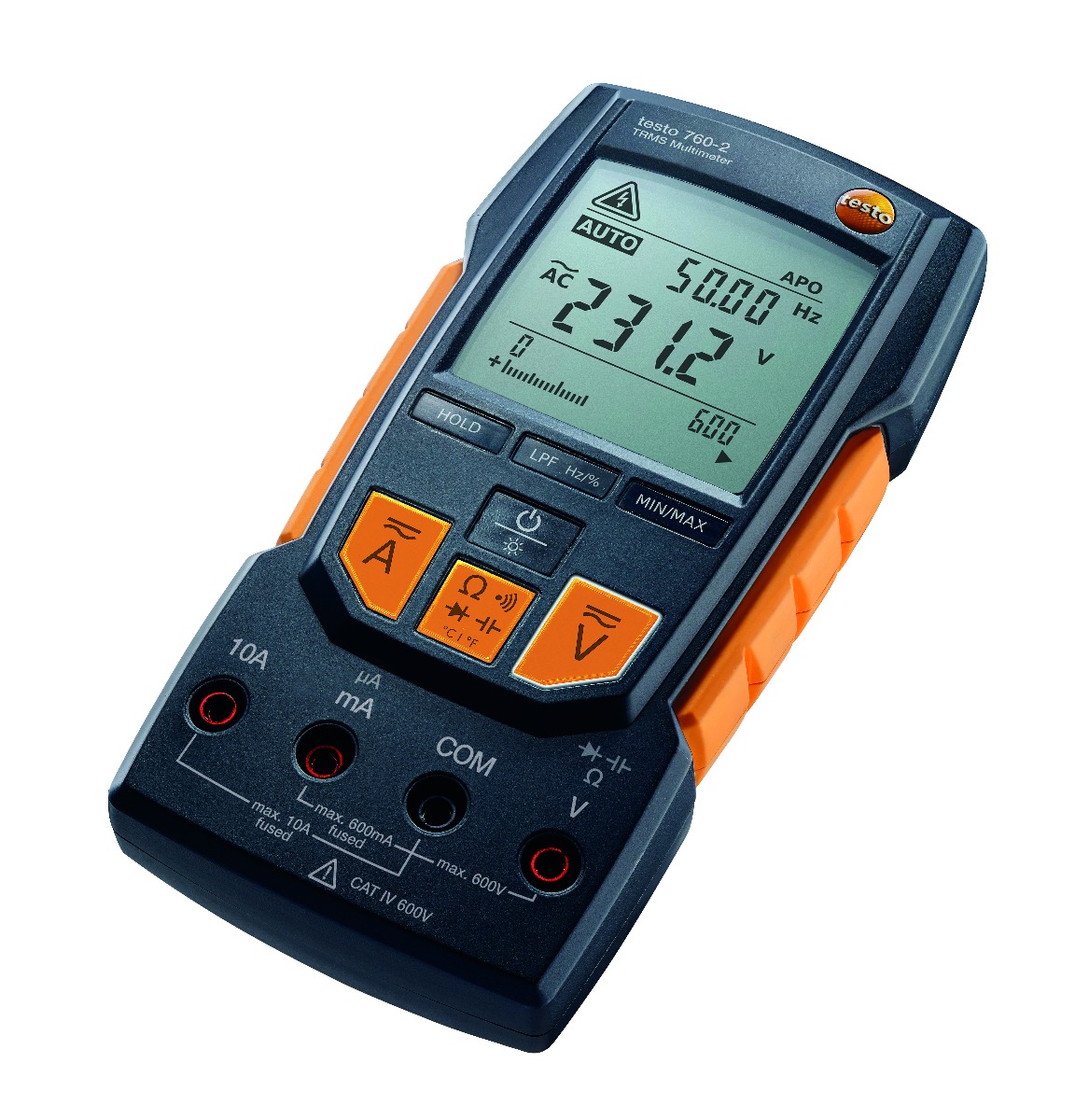

Testo 760-2 TRMS Multimeter

$306.00

Description

testo 760-2 TRMS multimeter

In addition to the automatic detection of measurement parameters, the testo 760-2 also measures current in the µA range, determines the root mean square and has a low-pass filter.
True root mean square measurement TRMS
Current measurement in the µA range
Low-pass filter for accurate measurement results on frequency converter motors

Temperature – TC Type K (NiCr-Ni)

Technical data
Measuring range -20 to +500 °C
Accuracy ±1 °C (0 to +100 °C)
Resolution 0.1 °C

General technical data

Technical data
Protection class IP64
Warranty 2 years
Storage temperature -15 to +60 °C
Weight 340 g
Overvoltage Category CAT III 1000V; CAT IV 600V
Authorizations CSA; TÜV; CE
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C

DC voltage

Technical data
Measuring range / Resolution 600 mV / 0.1 mV
6.000 V / 1 mV
60.00 V / 10 mV
600.0 V / 100 mV
Accuracy ± (0.8 % of mv + 3 Digit)

AC voltage

Technical data
Measuring range / Resolution 600 mV / 0.1 mV
6.000 V / 1 mV
60.00 V / 10 mV
600.0 V / 100 mV
Accuracy ± (0.8 % of mv + 3 Digit)

DC current

Technical data
Measuring range / Resolution 600 μA / 0.1 μA
6000 μA / 1 μA
60.00 mA / 10 μA
600.0 mA / 100 μA
6 A / 1 mA
10 A / 10 mA
Accuracy ± (1.5 % of mv + 5 Digit)

AC current

Technical data
Measuring range / Resolution 600 μA / 0.1 μA
6000 μA / 1 μA
60.00 mA / 10 μA
600.0 mA / 100 μA
6 A / 1 mA
10 A / 10 mA
Accuracy ± (1.5 % of mv + 5 Digit)

Resistance

Technical data
Measuring range / Resolution 60.00 Ohm / 0.01 Ohm
600.0 Ohm / 0.1 Ohm
6.000 kOhm / 1 Ohm
60.00 kOhm / 10 Ohm
600.0 kOhm / 100 Ohm
6.000 MOhm / 1 kOhm
60.00 MOhm / 10 kOhm
Accuracy ± (1.5 % of mv + 3 Digit)

Capacitance

Technical data
Measuring range / Resolution 6.000 nF / 0.001 nF
60.00 nF / 0.01 nF
600.0 nF / 0.1 nF
6.000 μF / 0.001 μF
60.00 μF / 0.01 μF
600.0 μF / 0.1 μF
6.000 mF / 1 μF
30.00 mF / 10 μF
Accuracy ± (0.5 % of mv + 3 Digit)

Frequency

Technical data
Measuring range / Resolution 600.0 Hz / 0.1 Hz
6.000 kHz / 1 Hz
60.00 kHz / 10 Hz
600.0 kHz / 100 Hz
6.000 MHz / 1 kHz
30.00 MHz / 10 kHz
Accuracy ± (0.1 % of mv + 1 Digit)

Instrument and measurement functions

Technical data
Diode test yes
Continuity Testing yes
Current probe measurement with adapter yes
Display ligthing yes
Hold yes
MinMax yes
Temperature measurement with adapter yes
True RMS yes
Low-pass filter yes
Duty cycle measurement yes
Display (counts) 6,000

Additional information

Weight 1 kg
