Testo 420 Volume Flow Hood

$5,277.00 + Freight & GST

Key Features:

16 measurement points that record Temperature, Humidity, Differential & Absolute Pressure.

Highly precise readings at swirl outlets thanks to flow straightener.

IOS & Andriod App Integration via Bluetooth connectivity.

Onsite Report Generation & Email

EAN: N/A SKU: 05634200 Testo 420 Categories: ,

Description

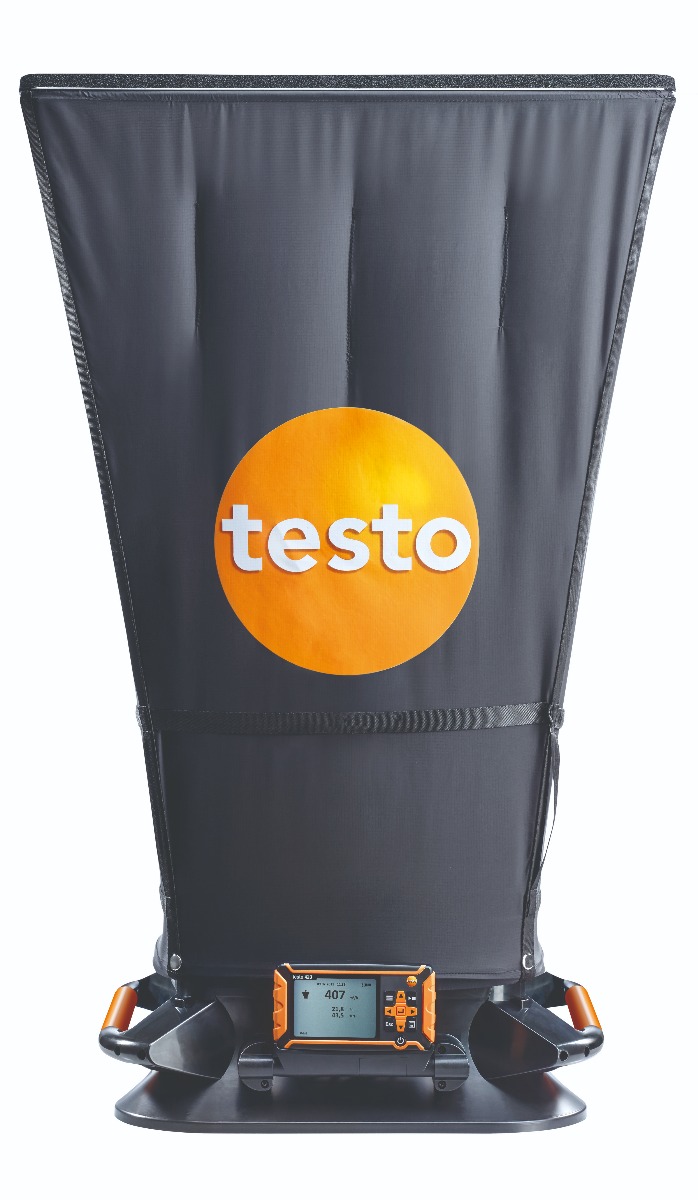

The testo 420 accurate, lightweight flow hood with Bluetooth is the precise and convenient solution for measuring volume flows at supplies and returns.
Handling this capture hood with flow straightener and tiltable display is especially easy with the low weight of less than 6.2 lbs. and ergonomic handles.
Key Features:
Rugged and toughflow hood that weighs less than 6.2 lbs. (2.9 kg.)

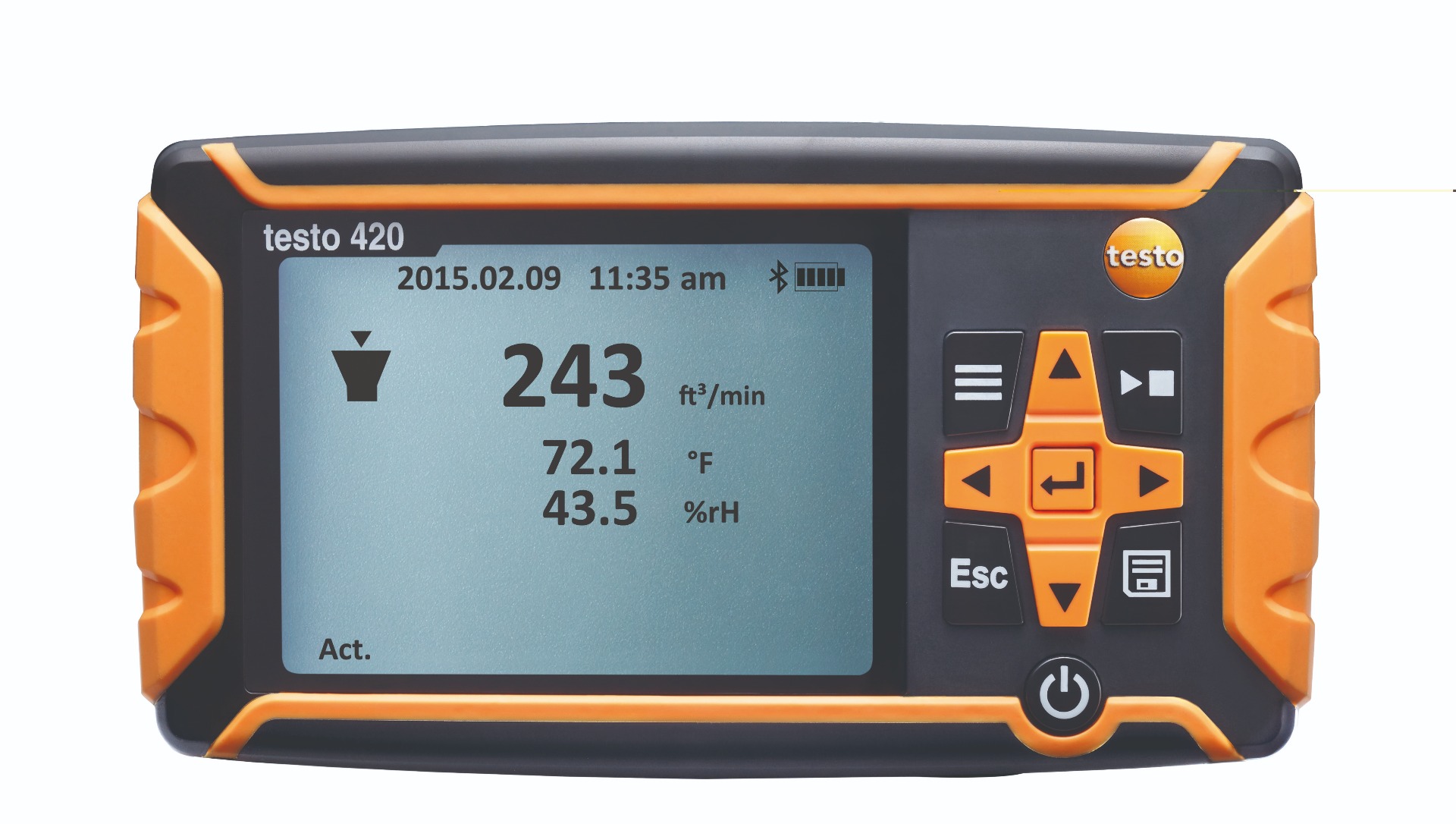

Large, easy to read, tiltable, backlit display (removable) makes it easy to see the readings

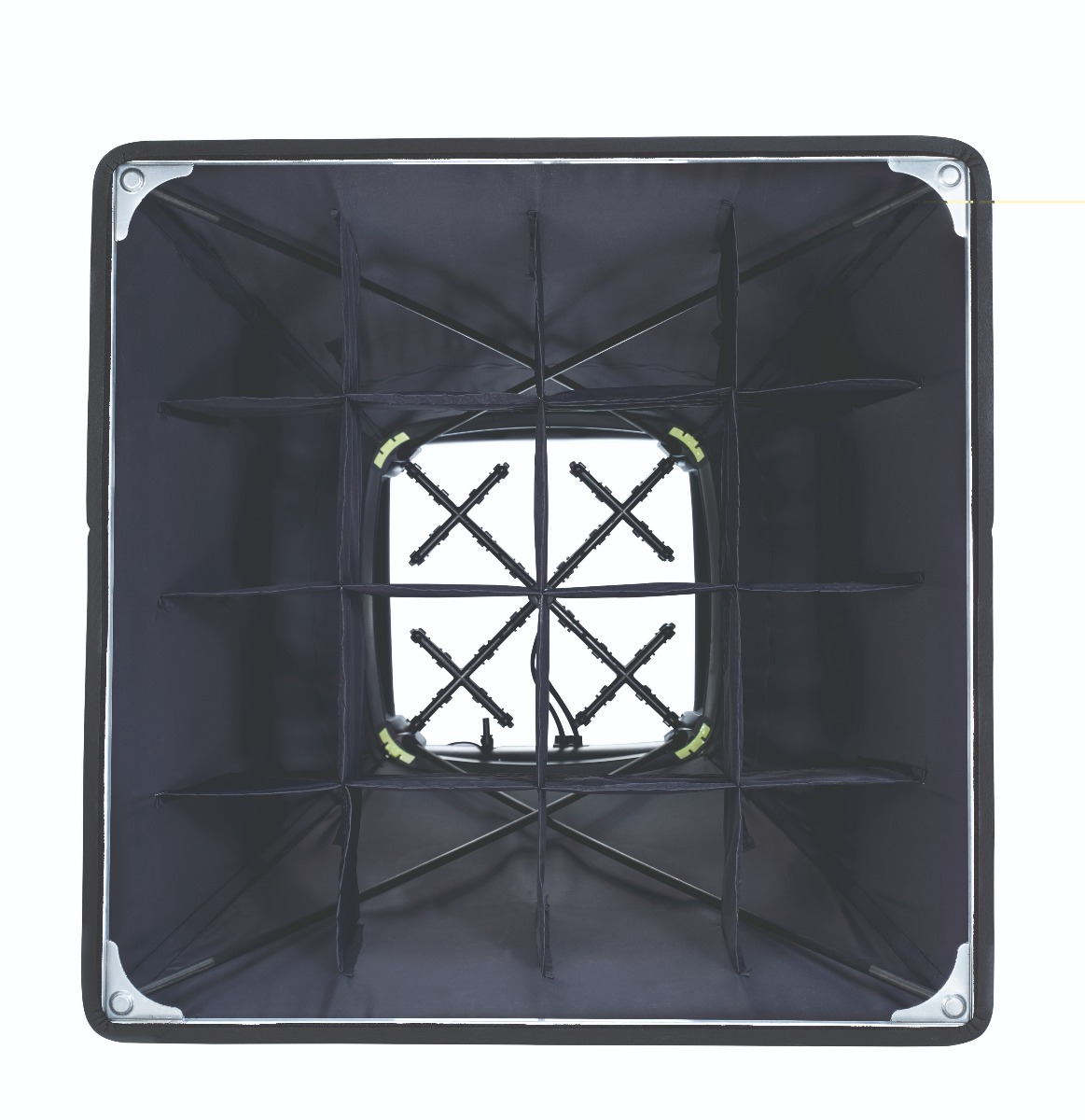

Flow straightener for more precise measurement at turbulent outlets
App integration via Bluetooth for fast and easy monitoring and reporting on site
Temperature – NTC Technical data Measuring range -4° to 158 °F / -20 to +70 °C Accuracy ±1 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C) ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to +0 °C)
Resolution 0.1 °F / 0.1 °C Reaction time 45 sec (t90)
Top Humidity – Capacitive Technical data Measuring range 0 to 100 %rH Accuracy ±1.8 %rH + 3 % of remaining measurement value at +77 °F / ±1.8 %RH + 3 % of mv at +25 °C (5 to 80 %rH) Resolution 0.1 %rH Top Differential Pressure Technical data Measuring range -120 to 120 Pa Accuracy ±2 % of remaining measurement value + 0.5 Pa at +72 °F, 1013 hPa / ±2 % of mv + 0.5 Pa at +22 °C, 1013 hPa
Resolution 0.001 Pa Reaction time 1 sec (t90)
Top Absolute Pressure Technical data Measuring range 700 to 1100 hPa Accuracy ±3 hPa Resolution 0.1 hPa Reaction time 1 sec Top Volume flow
Technical data
Measuring range 40 to 4000 m³/h Accuracy ±3 % of remaining measurement value + 12 m³/h at +72 °F / ±3 % of mv + 12 m³/h at +22 °C 1013 hPa (85 to 3500 m³/h)
Reaction time 1 sec (t90) Resolution 1 m³/h
Top General technical data Technical data EU-/EG-guidelines EU-guideline 2014/30/EU
Warranty 2 years
Battery type Alkali manganese, mignon, type AA Battery life 40 h
Dimensions 24 x 24 in. (Standard hood) / 610 x 610 mm (Standard hood)
Display size 3.5″ Display function Dot matrix Display ligthing with illumination Interface Micro-USB
Operating temperature 23° to 122 °F / -5 to +50 °C Memory 2.0 GB
Storage temperature -4° to 140 °F / -20 to +60 °C Weight 102 oz. / 2900 g



testo 420, testo flow hood, testo420, testo 420 flow hood, testo 420 volume flow hood, testo hood, testo air flow hood, testo 420 flow hood kit, 0563 4200, testo 0563 4200

Additional information

Weight 20 kg

Technical Data

Technical Data

Downloads

Downloads

Datasheet: testo 420
